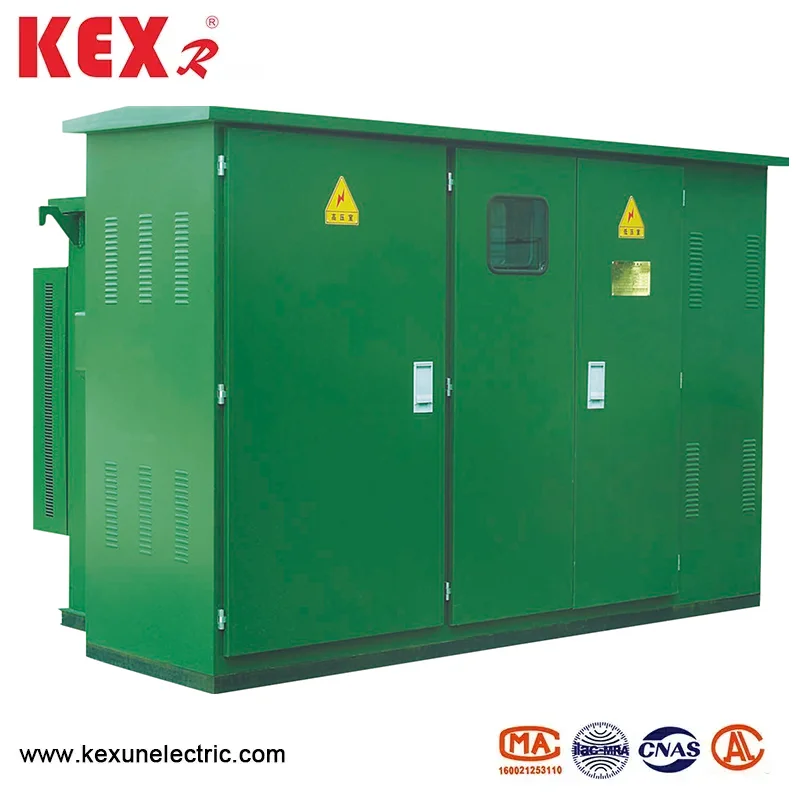

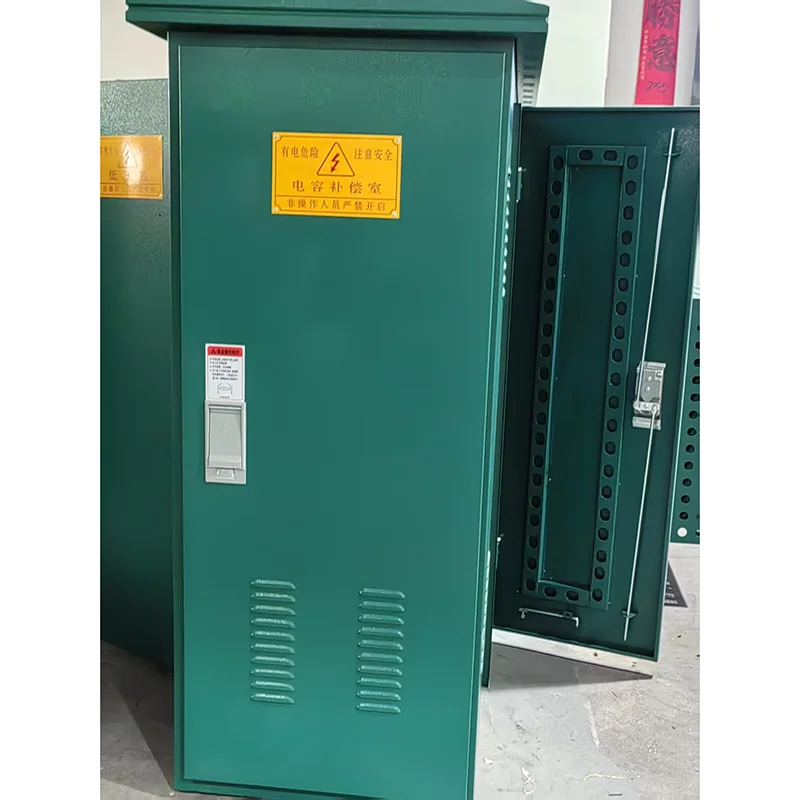

American Type Pad-Mounted Transformer produced by China manufacture Kexun is an integrated and modular small distribution transformer, which has the characteristics of compact structure, convenient installation and good protection, and is widely used in urban distribution networks, residential quarters, commercial areas and industrial power consumption.
Модел: ЗБВ-12
Марка: Кекр

Пошаљи упит

Опис производа

American typepad-mounted transformer has the following main features.

◆Compact design

Small size, less floor space, suitable for places with limited space.

American box-type transformer structure is adopted, which is usually installed on a concrete Pad-Mounted.

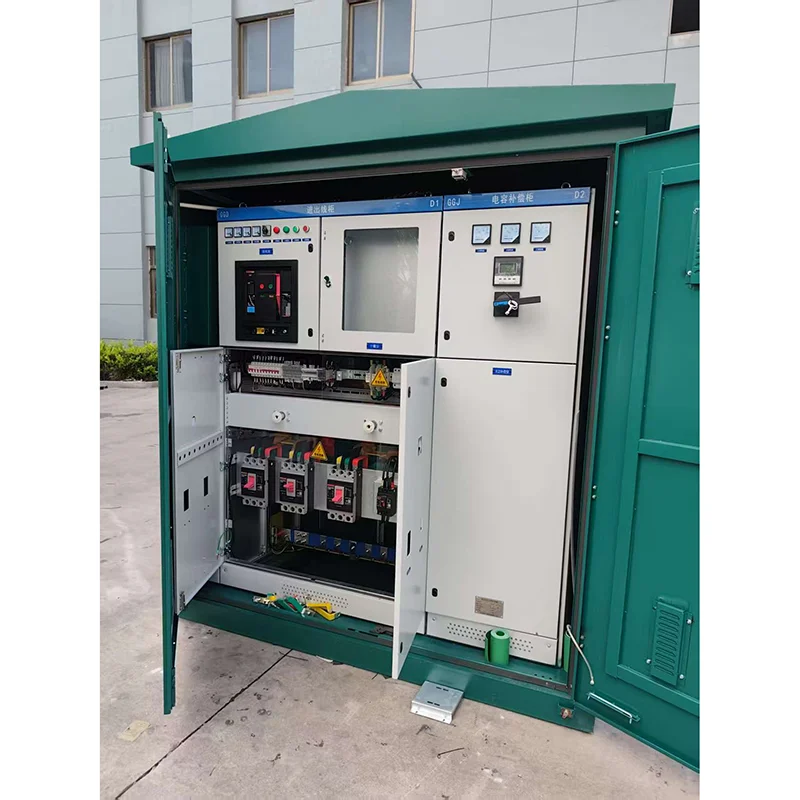

◆Pre-assembled structure

Complete the integration of high and low voltage switches, transformers and protection devices before leaving the factory to reduce the workload of on-site installation.

Adopt fully sealed structure, moisture-proof, dust-proof and corrosion-proof.

◆Safe and reliable

Adopt full insulation design to reduce the risk of electric shock.

It has the functions of overload, short circuit and temperature protection, and runs stably.

◆Easy maintenance

American plug-in cable head (elbow cable head) is adopted, which is convenient for quick installation and replacement. The design of the access door is reasonable and convenient for operation and maintenance.

◆Strong adaptability

American Type Pad-mounted transformer is suitable for outdoor environment, the protection level usually reaches IP67.

Customizable design can meet different voltage levels (such as 10kV/0.4kV) and capacity requirements (such as 50kVA~1600kVA).◆

●Common application scenarios of American type pad-mounted transformer

✅Urban distribution network: it is suitable for power distribution transformation of streets and communities, and reduces the occupied area.

✅Residential area: quiet design, suitable for power supply in residential areas.

✅Commercial center: beautiful and compact, without affecting the city appearance.

✅Industrial Park: Adapted to harsh environment with high reliability.

✅Temporary power consumption: such as construction sites, exhibitions, etc., which is convenient for rapid deployment.

●Transformer technical parameters used by American type pad-mounted transformer

Serial Number	Item	Unit	Technical parameters
1	Rated voltage	kV	10/0.4
2	Max operating voltage	kV	12
3	Rated frequency	Hz	50
4	Rated capacity	kVA	150-1600
5	1min power frequency withstand voltage	kV	35
6	Lightning impulse voltage	kV	75
7	Cooling method		ONAN
8	Breaking current of high voltage backup fuse	kA	50
9	Breaking current of plug-in fuse	kA	2.5
10	Environment temperature	℃	-35~40
11	Allowable Coil temperature rising	℃	65
12	No-load voltage regulation		±5% or±2*2.5%
13	Noise level	db	50
14	IP degree		IP43

◆Comparison of loss of different types of transformers

Capacity (kVA)	Voltage9(kV)		Connecting group	No-load current%			No load loss %			Impedance voltage%	Load loss (W)
Capacity (kVA)	HV	LV	Connecting group	S9	S10	S11	S9	S10	S11	Impedance voltage%	Load loss (W)
160	10±5 or2*±2.5	0.4	Dyn11 Yyn0	1.4	1.4	0.2	400	320	255	4.0	2200
200				1.3	1.3	0.2	480	380	305		2600
250				1.2	1.2	0.2	560	450	360		3050
315				1.1	1.1	0.2	670	530	425		3650
400				1.0	1.0	0.15	800	650	505		4300
500				1.0	1.0	0.15	960	750	605		5100
630				0.9	0.9	0.15	1200	910	755		6200
800				0.8	0.8	0.15	1400	1080	980	4.5	7500
1000				0.7	0.7	—	1700	1260	—		10300
1250				0.6	0.6	—	1950	—	—		12000

◆Table of technical parameters of load switch adopted

Item	Name	Unit	315A	630A
Rated voltage		KV	12	12
Max current		A	315	630
Rated frequency		Hz	50	50
Rated short-circuit closing current		KA	31.5	50
Rated short-term withstand current		KA	12.5	50
Rated short-term withstand time		S	2	2
Mechanical life		Time	2000	2000
Lightning impulse test	Phase to ground	KV	75	75
Lightning impulse test	Isolation fracture		85	85
1min work frequency withstand voltage	Phase to ground		42	42
1min work frequency withstand voltage	Isolation fracture		48	48
Rated peak withstand current		KA	31.5	50

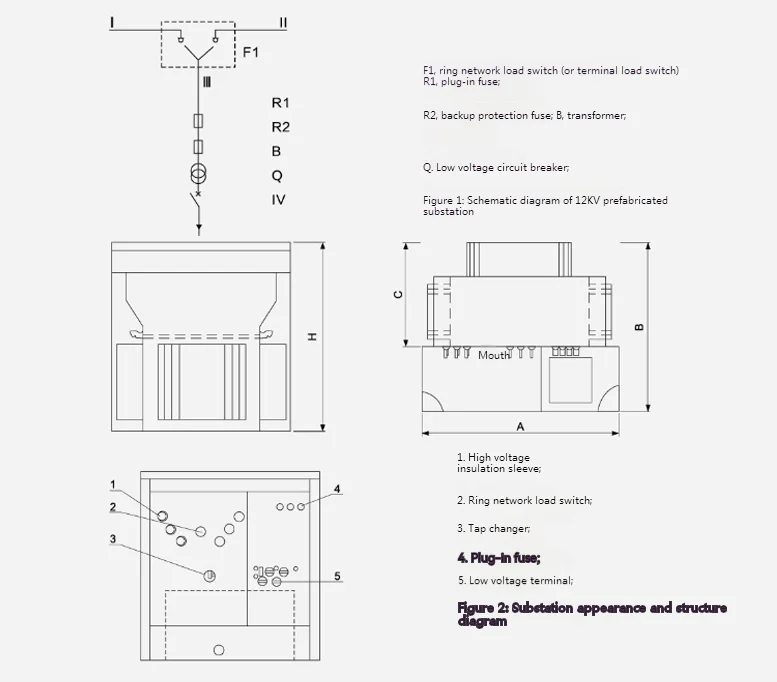

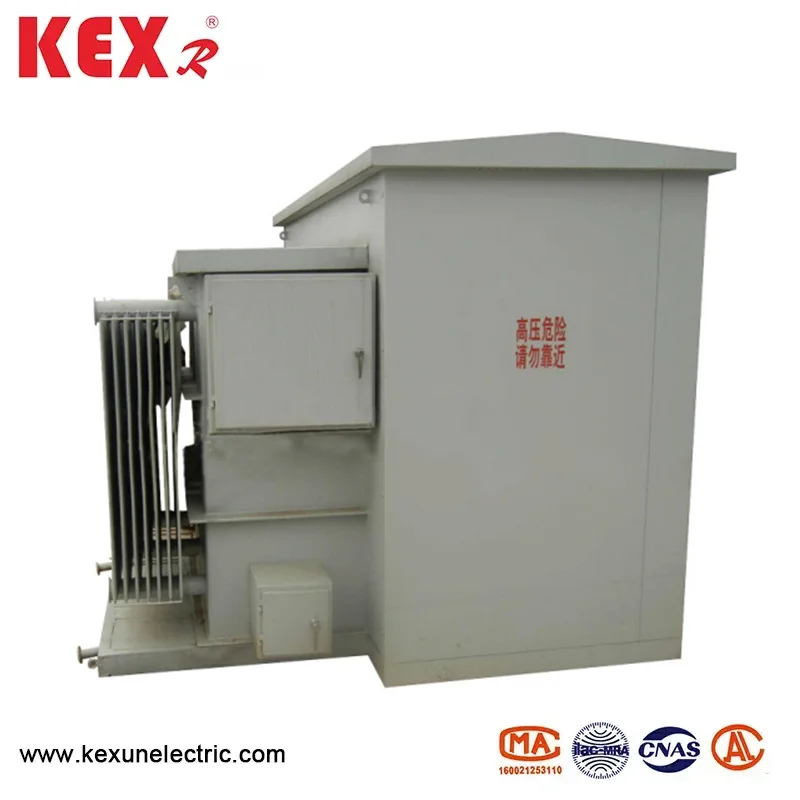

◆Dimensions of the American type pad-mounted transformer

American Type Pad Mounted Transformer

ZBW-12 Pre-installed American Box Type Substation standard dimensions
Capacity(kVA)	A	B	C	D	E	F	H
100~250	1900	1650	1250	650/800	600	1410/1560	1450
315	1900	1650	1350	650/800	650	1460/1610	1450
400~500	1900	1750	1450	650/800	650	1490/1640	1550
630	1900	1750	1550	650/800	700	1580/1730	1550
800	1900	1850	1550	650/800	700	1640/1790	1650
1000	1900	1850	1650	650/800	700	1640/1790	1650
